LK-HSPD High Speed ​​​​InGaAs Photodetector

  • Wide Bandwidth, Kuthamanga Kwambiri
  • Incorporated Bias-T
  • DC Wogwirizana
  • Kusindikizidwa kwa Hermetically, SMA Connector
  • Low Mdima Wamakono, chiŵerengero chapamwamba cha chizindikiro-ku-phokoso.
  • Small Fomu Factor.
Kufufuza

+ 86 29 88244373

Mafotokozedwe Akatundu

LK-HSPD yozindikira mwachangu kwambiri idapangidwa kuti ikwaniritse ntchito za digito ndi analogi. Mutuwu uli ndi InGaAs PIN photodiode yomwe imakhala ndi kutalika kwa kutalika kwa 1250 mpaka 1650 nm, pamodzi ndi zamagetsi zofunikira zofananira.

LK-HSPD imatha kutulutsa ma bandwidths a 8 GHz, 12 GHz, 18 GHz, 22 GHz, ndi 30 GHz. Kugwiritsa ntchito gawoli kumatengera mphamvu ya +3.3V kapena +5V, kutengera mtundu womwewo. Zapangidwa kuti zizigwira ntchito ndi ulusi wamtundu umodzi wa 9/125μm. Kutulutsa kwa RF kumakhala ndi cholumikizira chogwirizana ndi SMA kapena cholumikizira cha 2.92 mm, onse okhala ndi machesi a 50 ohm.

LK-HSPD imasindikizidwa mwamphamvu kuti itetezedwe kuzinthu zachilengedwe, potero imapangitsa kuti ikhale yolimba komanso yodalirika. Ili ndi mapangidwe opepuka, okhala ndi unyinji wochepera 15 magalamu, omwe ndi abwino kwa mapulogalamu omwe kulemera ndi chinthu chofunikira kwambiri. Gawoli limatsimikiziridwa molingana ndi Restriction of Hazardous Substances (RoHS) Directive 2.0, kutsimikizira kuti likutsatira malamulo okhwima a chilengedwe ndi chitetezo.

luso zofunika
Chiyerekezo & Mtheradi Maximum Rating
chizindikiro Sym. mtundu mlingo Unit
Kusunga kutentha kosiyanasiyana TSTG -45 mpaka +85 -55 mpaka +100 ℃
Opaleshoni kutentha osiyanasiyana TC 25 -40 mpaka +85 ℃
Mphamvu ya Voltage VR 3.3 kapena 5 2.8 ~ 5.25 V
Mphamvu ya Optical Input Pin +3 + 10 dBm
Mphamvu ya Optical Yoyaka PB - + 13 dBm
Kutentha kwa solder Tp 280 (10s) 330 (10s) ℃
Makhalidwe Amagetsi / Kuwala (TC = 22 ± 3 ℃)
chizindikiro Sym Zoyeserera Makhalidwe a Parameter Unit
Kutalika kwa Wavelength λ - 1000 ~ 1650 nm
Pafupipafupi manambala - - C-Bandi X-Bandi Ku-Band Ku+-Bandi K+-Bandi KUPHATIKIZAPO -
Bandwidth Yachizindikiro Yaing'ono f-3dB TC= 22 ± 3℃ 0.1 ~ 8 0.3 ~ 12 0.8 ~ 18 2 ~ 22 2 ~ 30 0.3 ~ 18 GHz
Kuyankha Re VR , Pin= 1mW λ = 1310nm ≥ 0.85 ≥ 0.85 ≥ 0.8 ≥ 0.75 ≥ 0.75 ≥ 0.75 A / W.
λ = 1550nm ≥ 0.95 ≥ 0.95 ≥ 0.75 ≥ 0.70 ≥ 0.65 ≥ 0.70
Amplitude Flatness A TC =-40～+85 ℃ ≤ ± 1.5 ≤ ± 1.5 ≤ ± 1.5 ≤ ± 2 ≤ ± 2 ≤ ± 1.5 dB
Linanena bungwe VSWR VSWR - ≤ 2 ≤ 2 ≤ 2.5 ≤ 2.5 ≤ 2.5 ≤ 2.5 -
Mphamvu ya Voltage VR - + 3.3 + 3.3 + 3.3 + 3.3 +5 +5 V
RF cholumikizira - - SMA SMA SMA 2.92mm 2.92mm SMA -
Saturation Optical Power Ps VR , λ = 1550nm
AC Modulated		 +7 +7 +7 +7 +7 + 10 dBm
Mdima Wamdima Id VR ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10 nA
Saturation RF linanena bungwe Mphamvu Pout - -10 dBm
Linanena bungwe RL - 50 Ω

● Mapiritsi Amene Amayankhidwa

(VR , λ=1550nm , TC =25 ºC ,Pin=0dBm)

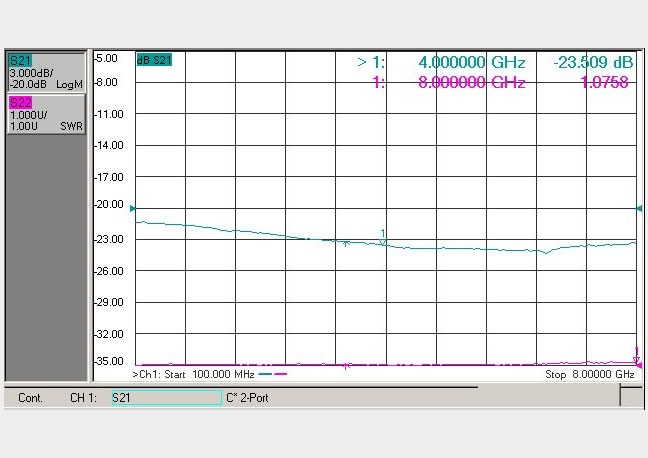

(Fig.1 C-Band Photodetector Frequency Response)

(Fig.2 X-Band Photodetector Frequency Response)

(Fig.3 Ku-Band Photodetector Frequency Response)

(Fig.4 K+ -Band Photodetector Frequency Response)

● Dimension ndi Pin (Unit:mm[ inchi])

RF cholumikizira: SMA kapena 2.92mm

● Kuitanitsa Chidziwitso

Tsamba 1:

Code  Bandwidth ya Analogi
C 0.1 ~ 8GHz
X 0.3 ~ 12 GHz
Ku 0.8 ~ 18 GHz
Ku+ 2 ~ 22 GHz
K+ 2 ~ 30 GHz
Plus 0.3 ~ 18 GHz

Tsamba 2:

Code cholumikizira Type ndemanga
N Palibe Cholumikizira Single-mode 9/125 μm fiber pigtail
A FC / APC
P FC/PC

● Njira zopewera ngozi

  • The CHIKWANGWANI kupinda utali wozungulira zosachepera 20mm kupewa CHIKWANGWANI kuonongeka.

  • Onetsetsani kuti mbali ya fiber coupling ndi yoyera musanayilumikize ku opto-circuit .

  • Chitetezo choyenera cha ESD chimafunika posungira, kuyendetsa ndi kugwiritsa ntchito.

Ma photodetectors athu onse okhazikika amatha kusinthidwa kukhala ma module!

Mapulogalamu

  • Kulumikizana kwa Optical-fiber

  • Radar Information Processing

  • Nkhondo Yamagetsi

  • Kuyesa kwa Signal Mothamanga Kwambiri ndi Kuyeza

  • Chitetezo ndi Kuyang'anira
