Mafotokozedwe Akatundu
A high-reliability expanded beam fiber optic connector designed to meet GJB599B/MIL-DTL-38999 Series III interface requirements, with performance compliant with ARINC 801 standards, delivering exceptional optical performance in demanding aerospace and defense environments.
The non-contact expanded beam optical structure ensures stable transmission under dust, vibration, and repeated mating/unmating conditions. The ceramic O-ring sleeve provides superior port protection, significantly extending service life.
Features Ofunika
- GJB599B (MIL-DTL-38999 III) interface compatible, optical performance meets ARINC 801 standard
- Designed for multi-channel optical communication in aviation, electronics, and marine systems
- Beam-expanding lens design for true non-contact optical docking
- Closed O-ring ceramic sleeves greatly improve insertion/removal endurance
- Excellent dust resistance, suitable for harsh environments
- Easy termination and extraction using standard M81969/14-03 tools
luso zofunika
Mechanical Magwiridwe
| chizindikiro | mfundo |
| Moyo Wamakanema | 2000 mating cycles (plug/unplug) |
| Kukanika Kwakukhudzidwa | Peak acceleration: 2940 m/s²Duration: 3 msSpeed change: 5.61 m/s |
| kugwedera | Frequency: 10 Hz – 2000 HzPower spectral density: 0.4 G²/HzAcceleration (RMS): 23.1 G |
| Kukaniza Kwamakokedwe | Chingwe cha ≥ 68 N (Φ2 mm) |
Ntchito Zachilengedwe
| chizindikiro | mfundo |
| opaleshoni Kutentha | −55 °C to +125 °C (depending on cable) |
| Kulimbana ndi Mchere wa Mchere | K: 500 hF: 48 hW: 500 hMW: 192 h (acidic atmosphere) |
| Airtightness (airtight adapter socket) | Gas leakage rate ≤ 1 × 10⁻⁹ Pa`m³/sPressure differential: 1 atm |
Zochita Zojambula
| chizindikiro | mfundo |
| Loss mayikidwe | ≤ 0.6 dB @ 850 nm≤ 1.0 dB @ 1310 nm |
| Loss Bwererani | ≥ 20 dB @ 850 nm≥ 45 dB @ 1310 nm |
Zolumikizira Zopangidwa Mwamakonda ndi Njira Zina Zodalirika Zosagwiritsa Ntchito Mitundu Yotsogola Padziko Lonse
Timapereka zolumikizira za fiber optic zomwe zimapangidwa mwamakonda zomwe zimagwirizana ndi zosowa zanu, pomwe timapereka njira zina zotsika mtengo komanso zodalirika m'malo mwa makampani akuluakulu apadziko lonse lapansi. Kuyambira pakupanga mpaka kuyika mawaya, gulu lathu la mainjiniya limatsimikizira kuphatikizana bwino komanso magwiridwe antchito odalirika m'malo ovuta.
Gusaba Akazi Gashya
Zamlengalenga ndi Ma Avionics
Amagwiritsidwa ntchito m'machitidwe a ndege komwe kukana kugwedezeka ndi kutumiza kwa kuwala kodalirika ndikofunikira.
Asitikali & Chitetezo
Amapereka maulumikizidwe okhazikika a ulusi kuti azitha kulumikizana ndi zida m'malo omwe muli fumbi komanso malo omwe anthu amanjenjemera kwambiri.
Asitikali a panyanja ndi a pamadzi
Zabwino kwambiri pa sitima zapamadzi ndi za m'mphepete mwa nyanja zomwe zimakhala ndi chinyezi, kupopera mchere, komanso nyengo zovuta.
Malo Ogulitsa ndi Ovuta
Kuonetsetsa kuti deta itumizidwa modalirika m'mafakitale, migodi, ndi ntchito zamafuta ndi gasi.
Kuwulutsa ndi Kulankhulana Panja
Yoyenera kuulutsa panja ndi maukonde a pamunda omwe amafuna kulumikizana kwa ulusi mwachangu komanso modalirika.
FAQ
1. Kodi cholumikizira cha fiber optic chowonjezera mphamvu ndi chiyani?

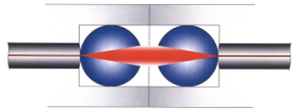

Zolumikizira za nyali zokulirapo zimagwiritsa ntchito magalasi owonera kuti zikulitse ndikugwirizanitsa nyali yowunikira, zomwe zimathandiza kuti kuwala kusalumikizidwe. Kapangidwe kameneka kamathandiza kuti kuwala kusamavutike ndi fumbi komanso kuipitsidwa.
2. Kodi zolumikizira zanu zimatsatira miyezo iti?
Zolumikizira zathu zitha kupangidwa kuti zigwirizane ndi miyezo ya MIL-DTL-38999, MIL-DTL-83526, ndi ARINC 801.
3. Kodi mumalimbikitsa kusintha kwa zinthu?
Inde. Tikhoza kupereka mayankho okonzedwa mwamakonda kuphatikizapo kuchuluka kwa ulusi, mawonekedwe olumikizira, ndi makonzedwe a chingwe malinga ndi zofunikira za polojekiti.
4. Kodi zinthu zanu zingalowe m'malo mwa mitundu yodziwika bwino yapadziko lonse lapansi?
Inde. Zolumikizira zathu zokulitsa mphamvu zapangidwa kuti zipereke magwiridwe antchito ofanana ndi makampani otsogola padziko lonse lapansi, pomwe zimapereka kusintha kosinthika komanso mitengo yopikisana.
5. Ndi mafakitale ati omwe amagwiritsa ntchito zolumikizira za beam expanded?
Amagwiritsidwa ntchito kwambiri mu ndege, chitetezo, zida zamafakitale, njira zolumikizirana panja, komanso ntchito zovuta zachilengedwe.
6. Kodi ubwino wa zolumikizira za beam expanded ndi wotani?
Kukana mwamphamvu fumbi ndi kuipitsidwa; Kukhalitsa nthawi yayitali; Kuyeretsa kochepetsedwa; Kugwira ntchito kodalirika m'malo ovuta.
Chifukwa Chake Tiyenera Kugwirizana Nafe

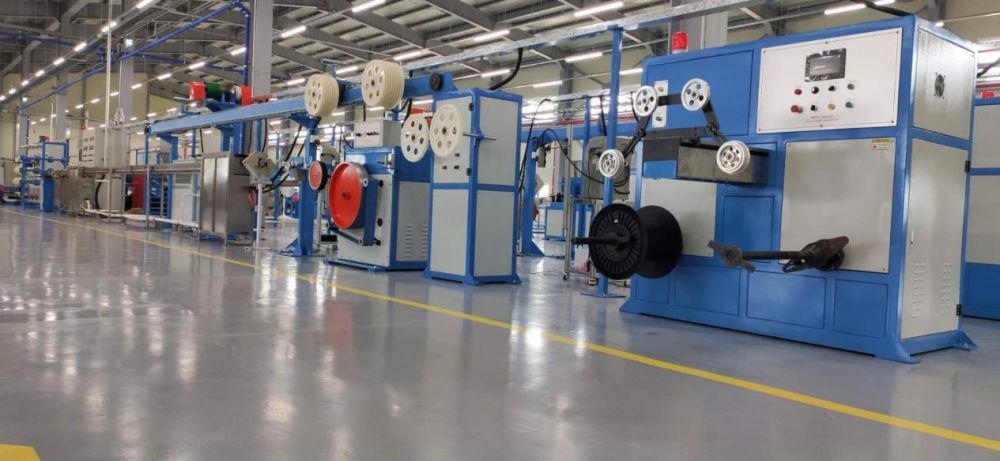

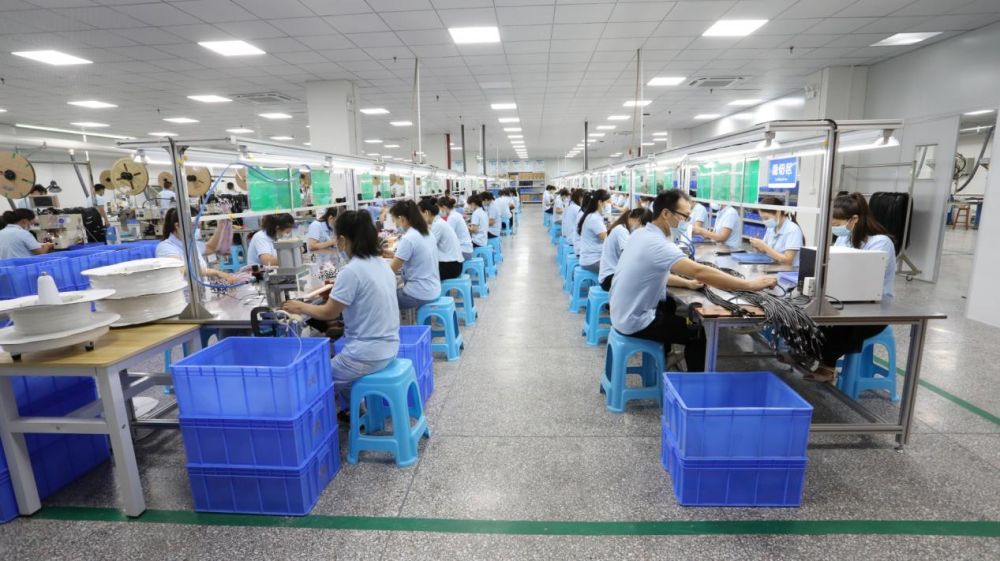

Wopanga Chingwe Cholumikizira cha Mtanda Wokulirapo Katswiri
Timapereka zolumikizira zodalirika zokulitsa kuwala kwa fiber optic zomwe zimapangidwa kuti zigwiritsidwe ntchito molimbika monga ndege, chitetezo, ndi mafakitale.
Kugwirizana kwa Miyezo Yapadziko Lonse
Zolumikizira zathu zimapangidwa kuti zigwirizane ndi miyezo yamakampani monga MIL-DTL-38999, MIL-DTL-83526, ndi ARINC 801, kuonetsetsa kuti zimagwirizana bwino ndi machitidwe omwe alipo.
Kutha Kupanga Mwamakonda
Timathandizira kusintha kosinthika kuphatikizapo kukula kwa chipolopolo, kuchuluka kwa ulusi, ma cable assemblies, ndi ma hybrid optical/electrical solutions kuti tikwaniritse zofunikira za polojekiti.
Njira Yodalirika Yopangira Mitundu Yapadziko Lonse
Mayankho athu amapereka kudalirika kwakukulu komanso magwiridwe antchito ofanana ndi makampani otsogola padziko lonse lapansi olumikizirana, kupatsa makasitomala njira ina yotsika mtengo komanso yodalirika.
Quality & kudalirika
Zogulitsa zonse zimayesedwa mwamphamvu kuti zitsimikizire kuti kuwala kumagwira ntchito bwino komanso kuti ntchitoyo ikhale nthawi yayitali m'malo ovuta.
Ntchito Yaukadaulo
Timapereka chithandizo chaukadaulo chokwanira kuyambira kusankha zolumikizira ndi kusintha mpaka kupanga zingwe, kuyika, ndi chithandizo chaukadaulo cha nthawi yayitali.
Request a quote today and find the right expanded beam connector for your project！
