LK-NY13T UWB Mwachindunji Modulated Transmitter
- High-Liwiro Mwachindunji Modulated DFB Laser
- Ultra-wideband (yoposa 18GHz)
- Automatic Optical Power Control
- Kutentha kwa mlandu: (-40 ℃～70℃)
- High-Dynamic-Range
- Mkulu linanena bungwe mphamvu
- Phokoso Lochepa Kwambiri (RIN)
Mafotokozedwe Akatundu
LK-NY13T Transmitter imapangidwa ndi zida zapamwamba kwambiri, zomwe zimaphatikizira kuthamanga kwachangu mwachindunji Distributed Feedback (DFB) laser, automatic optical power control subsystem, automatic regulation subsystem, voltage stabilization conversion subsystem, ndi kuwunika ndikuwonetsa mawonekedwe.
Ma transmitter otsogola awa amagwira ntchito pamtunda wa 1310nm ndipo amakhala ndi bandwidth yosinthira yomwe imapitilira 18GHz, kuwonetsetsa kuti kutumizirana ma data kuli kothamanga kwambiri. Imapereka mphamvu yotulutsa mpaka 10mW, yodziwika ndi phokoso lochepa kwambiri (RIN), lomwe limathandizira kukhazikika kwa mawonekedwe ake.
Mapangidwe amagetsi a LK-NY13T Transmitter adapangidwa kuti azitha kulowetsamo mphamvu imodzi yokha, kuwonetsetsa kuti ntchito yokhazikika pamagetsi ambiri kuyambira +7V mpaka +36V. Kuphatikiza apo, transmitter ili ndi mawonekedwe omwe amatsimikizira kukhazikika kwa magetsi onse komanso kutulutsa kwamagetsi, kupatsa ogwiritsa ntchito mayankho munthawi yeniyeni.
luso zofunika
Miyezo Yokwanira Kwambiri
| chizindikiro | chizindikiro | Mphindi. | Mtundu. | Max. | Unit |
| yosungirako kutentha | TSTG | -55 | + 25 | + 85 | ℃ |
| Kutentha kwa ntchito | TC | -40 | + 25 | + 70 | ℃ |
| Mphamvu yolowetsa ya RF1 | Pin | - | + 10 | + 20 | dBm |
| Voteji | Vin | +7 | + 12 | + 36 | V |
(1) Continuous wave (CW) ntchito mode.
Tsatanetsatane wa Kuwala ndi Magetsi (TC = 22±3℃)
| chizindikiro | chizindikiro | Ulili | Mphindi. | Mtundu. | Max. | Unit |
| timaganiza | λ | - | - | 1310 | - | nm |
| pafupipafupi (3dB) | f3dB | X gulu | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Mphamvu yotulutsa kuwala | P | - | 5 | 10 | - | mW |
| Phokoso Lamphamvu | MFUMU | - | - | - | -155 | dBc/Hz |
| Kubwerera kutayika (VSWR) | VSWR | X gulu | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Lowetsani 1 dB Compression | - | - | + 13 | + 15 | - | dBm |
Kupereka Mphamvu (TC = 22±3℃)
| chizindikiro | Mphindi. | Mtundu. | Max. | Unit |
| Voteji | +7 | + 12 | + 36 | V |
| Current(2) | 0.07 | 0.1 | 1 | A |
(2) Mayeso oyeserera:Vin=+12V.
● Mkhope Wamayankhidwe Wabwino

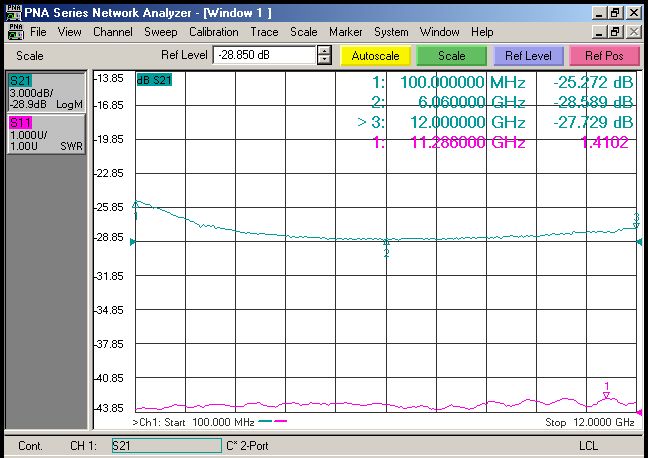

Chithunzi cha 1 LK-NY13T-X Transmitter Yemwe Akuyankhira Curve
Chithunzi cha 2 LK-NY13T-Ku Transmitter Yemwe Amayankhira Mapindikira
● Ma Spectrogram Odziwika

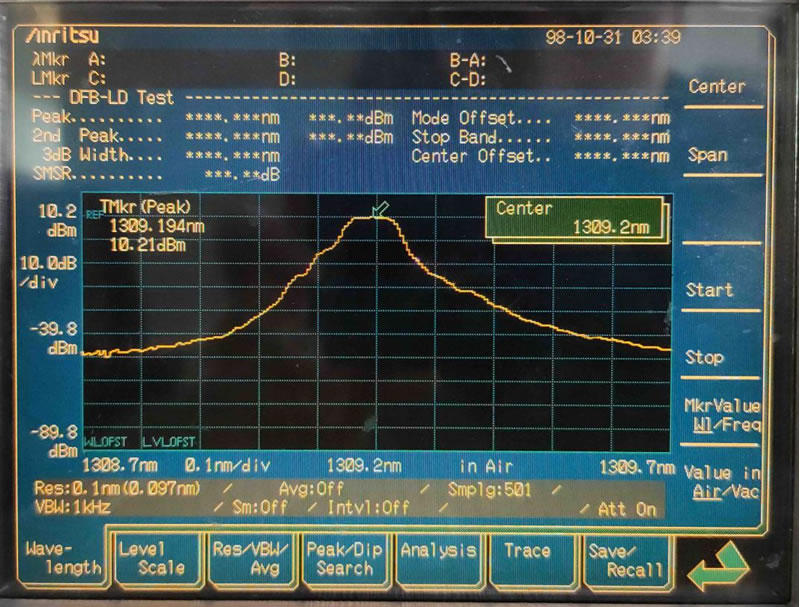

Chithunzi cha 3 LK-NY13T Transmitter Typical Spectrogram
● Dimension Unit:mm[inchi]
Chithunzi cha 4 LK-NY13T Transmitter Dimension
RF cholumikizira: SMA
Cholumikizira Mphamvu: J30J-9-ZKP
● Pin Of Power Supply
| chizindikiro | Kufotokozera | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Voteji | Vin | NC | GND | NC | |||||
● Order Information
Tsamba 1:
| chizindikiro | Kufotokozera |
| X | 0.1 ~ 12 GHz |
| Ku | 1 - 18 GHz |
Mapepala 2
| chizindikiro | cholumikizira Type | Kufotokozera |
| N | makonda | makonda |
| A | FC/APC | Standard 9/125μm SM CHIKWANGWANI |
| P | FC / PC | Standard 9/125μm SM CHIKWANGWANI |
Mapulogalamu
Antenna & Radar
Electronic countermeasure system
Kutumiza kwa analogi RF
Broadband Wireless Communication
Mobile communication base station
